prometheus 配置钉钉告警

prometheus的alertmanager本身不支持直接使用钉钉告警的方式，若配置钉钉告警需要webhook插件做为组件。

安装钉钉告警webhook插件

由于我的prometheus和alertmanager都安装在kubernetes里面，所以钉钉插件也安装在k8s平台里面。若需要其他安装方式，可以参考
钉钉插件github仓库

• vim dingtalk-alert-deployment.yml

apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  labels:
    app: dingtalk-alert
  name: dingtalk-alert
  namespace: monitor
spec:
  replicas: 1
  selector:
    matchLabels:
      app: dingtalk-alert
  template:
    metadata:
      labels:
        app: dingtalk-alert
    spec:
      containers:
      - image: timonwong/prometheus-webhook-dingtalk
        command:
        - /bin/prometheus-webhook-dingtalk
        - --ding.profile=webhook1=https://oapi.dingtalk.com/robot/send?access_token=da1cc37cd155f73112bcbf4aa4be49c8c400786f1b38908a15fa1e9be0eee51
        - --template.file=/usr/share/prometheus-webhook-dingtalk/template/default.tmpl
        imagePullPolicy: IfNotPresent
        name: dingtalk-alert
        ports:
        - containerPort: 8086
          name: service
          protocol: TCP
        resources:
          limits:
            cpu: 100m
            memory: 512Mi
          requests:
            cpu: 50m
            memory: 128Mi
        terminationMessagePath: /dev/termination-log
        terminationMessagePolicy: File
        volumeMounts:
        - mountPath: /usr/share/prometheus-webhook-dingtalk/template/default.tmpl
          name: dingtalk-tmpl
          subPath: default.tmpl
      dnsPolicy: ClusterFirst
      volumes:
      - configMap:
          name: dingtalk-alert-configmap
        name: dingtalk-tmpl

• 注意： –ding.profile指定钉钉机器人的url，其中webhook1为自定义名称，在配置alertmanager规则中指定webhook时会使用

• 注意：–template.file指定发送告警模版文件

• [x]注意：–ding.profile后钉钉机器人url不可有引号，不然会报404错误，非k8s安装时需要加引号

• vim dingtalk-configmap.yml

  apiVersion: v1
  data:
    default.tmpl: |
      {{ define "__subject" }}[{{ .Status | toUpper }}{{ if eq .Status "firing" }}:{{ .Alerts.Firing | len }}{{ end }}] {{ .GroupLabels.SortedPairs.Values | join " " }} {{ if gt (len .CommonLabels) (len .GroupLabels) }}({{ with .CommonLabels.Remove .GroupLabels.Names }}{{ .Values | join " " }}{{ end }}){{ end }}{{ end }}
      {{ define "__alertmanagerURL" }}{{ .ExternalURL }}/#/alerts?receiver={{ .Receiver }}{{ end }}

      {{ define "__text_alert_list" }}{{ range . }}
      **告警**
      {{ range .Annotations.SortedPairs }}> - {{ .Name }}: {{ .Value | markdown | html }}
      {{ end }}

      **标签**
      {{ range .Labels.SortedPairs }}> - {{ .Name }}: {{ .Value | markdown | html }}
      {{ end }}
      **Source:** **http://grafana.monitor.bj.univer.top/d/xLrfYirmk/a-li-yun-gao-jing?orgId=1**

      {{ end }}{{ end }}

      {{ define "ding.link.title" }}{{ template "__subject" . }}{{ end }}
      {{ define "ding.link.content" }}#### \[{{ .Status | toUpper }}{{ if eq .Status "firing" }}:{{ .Alerts.Firing | len }}{{ end }}\] **[{{ index .GroupLabels "alertname" }}]({{ template "__alertmanagerURL" . }})**
      {{ template "__text_alert_list" .Alerts.Firing }}
      {{ end }}
  kind: ConfigMap
  metadata:
    creationTimestamp: 2019-05-13T07:15:10Z
    labels:
      app: dingtalk-alert
    name: dingtalk-alert-configmap
    namespace: monitor

• vim dingtalk-service.yml

  apiVersion: v1
  kind: Service
  metadata:
    creationTimestamp: 2019-05-13T07:15:10Z
    labels:
      app: dingtalk-alert
    name: dingtalk-alert-svc
    namespace: monitor
    resourceVersion: "31476279"
    selfLink: /api/v1/namespaces/monitor/services/dingtalk-alert-svc
    uid: d81b6783-754e-11e9-8566-00163e10fec4
  spec:
    clusterIP: 172.19.1.47
    externalTrafficPolicy: Cluster
    ports:
    - name: service
      nodePort: 31221
      port: 8060
      protocol: TCP
      targetPort: 8060
    selector:
      app: dingtalk-alert
    sessionAffinity: None
    type: NodePort

修改alertmanager配置

• alertmanager增加webhook选项，指定钉钉插件

  alertmanager.yml: |
    global:
        resolve_timeout: 5m
    receivers:
    - name: webhook
      webhook_configs:
      - url: http://dingtalk-alert-svc:8060/dingtalk/ops/send
        send_resolved: true
    route:
      group_interval: 5m
      group_wait: 10s
      receiver: webhook
      repeat_interval: 3h

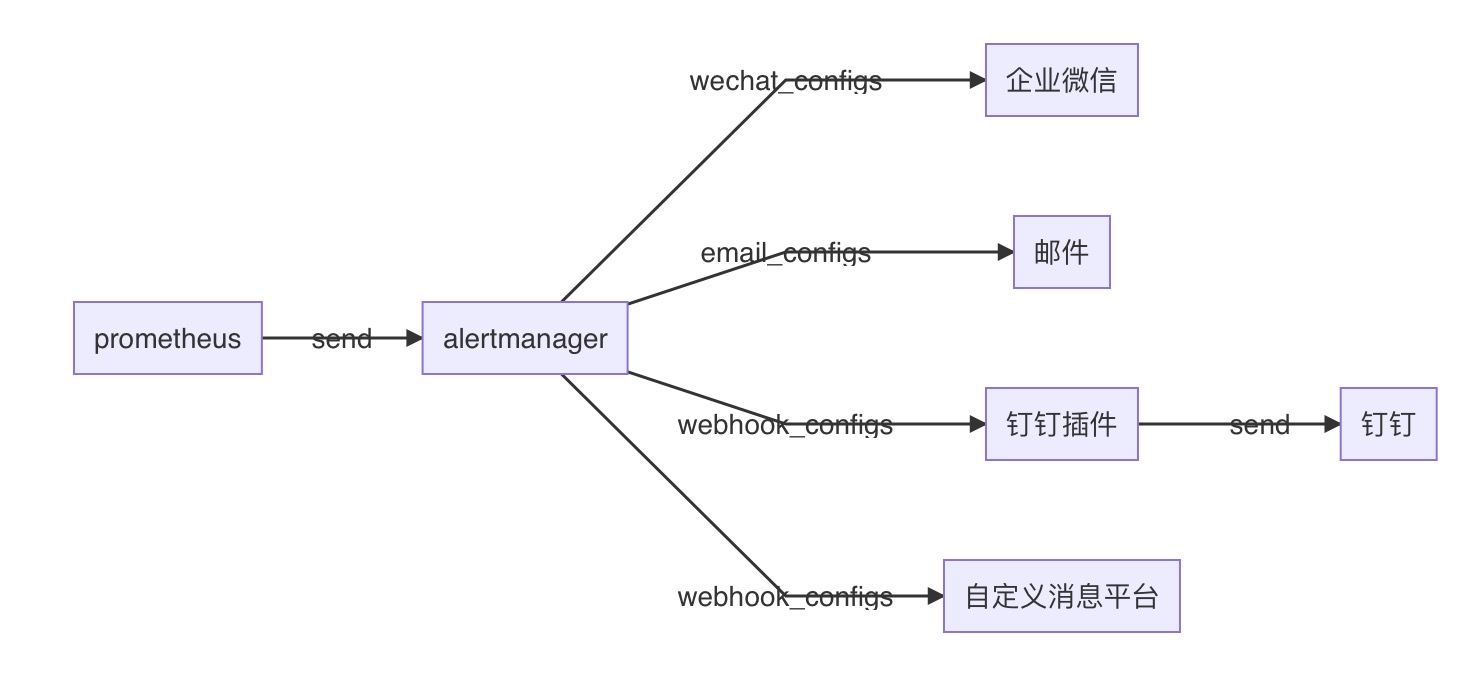

  整体结构如下
